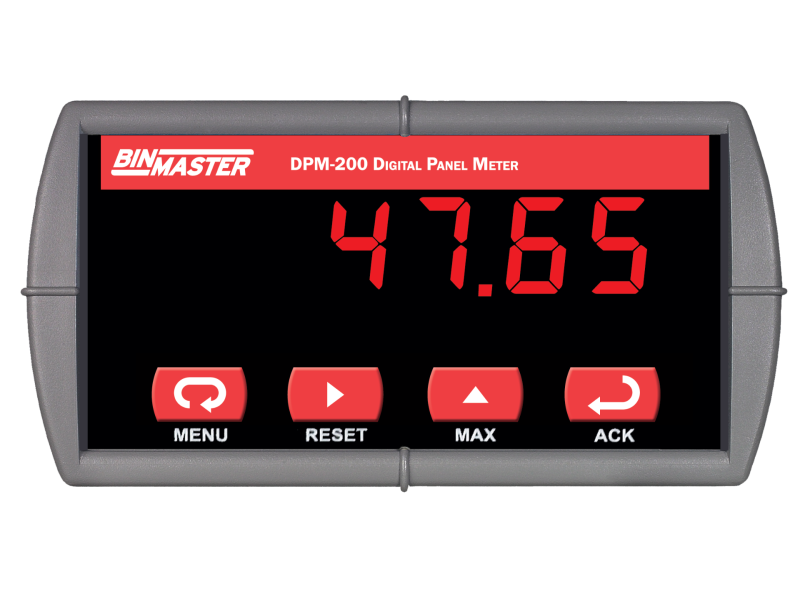

main product photo

DPM-200: 0.56” Display, Powered by 85-265 VAC

SKU
DPM-200-SM-VAC

Please specify choice of output(s) in your Quote Request.

No Options Installed                                                       SKU 348-0037

24 VDC Transmitter Supply                                           SKU 348-0038

2 Relays                                                                            SKU 348-0039

2 Relays & Transmitter Supply                                      SKU 348-0040

4-20 mA Output                                                               SKU 348-0041

4-20 mA Output & Transmitter Supply                         SKU 348-0042

4-20 mA Output & Dual VDC Transmitter Supplies    SKU 348-0043

2 Relays, 4-20 mA Output, & Transmitter Supply       SKU 348-0044

About
Uses
Features
Specs
Downloads

The DPM-200 digital panel meter is designed to accept 4-20 mA inputs from a wide variety of sensors. It is extremely versatile, easy to set up, and suitable for use in a wide variety of indoor or outdoor process applications. The display features an extraordinarily bright and large LED output, with the standard model offering 0.56” display height and the X2 model offering an astounding 1.2” display height that can be easily seen up to 30 feet away. It is visible in bright sunlight, smoke, fog, or dusty environments. A convenient keypad allows users to set and acknowledge alarms and manage output relays.

  • Manufacturers using sensors with a 4-20 mA output to manage process operations
  • Monitoring the level of solids, powders, or liquids stored in bins, tanks, or silos
  • Operations that are managing a wide number of process variables
  • Plants where multiple storage vessels must be continuously monitored
  • Process operations where overfills and outages must be prevented
  • Accepts 4-20 MA inputs from level sensors
  • Housed in a shallow-depth, NEMA 4X enclosure
  • Two display height options: standard DPM-200 meter is 0.56" (14.2 mm); X2 height is 1.2" (30.5 mm)
  • Adjustable display intensity for a variety of lighting conditions and direct sunlight
  • Setup via free MeterView software, four front panel pushbuttons, or using the cloning function
  • Flexible relay functions for automatic or manual resets and 0 to 199 second time delays
  • User selectable fail-safe operation is independently programmable for each relay

Display: DPM-200: 0.56" (14.2 mm); DPM-200 X2: 1.20" (30.5 mm) red LED, 4 digits (-1999 to 9999)
Display Intensity: Eight user selectable levels
Front Panel: NEMA 4X, IP65; NEMA 4X enclosures available
Display Update Rate: Process/RTD: 3.7-5/sec; TC: 1.8-2.5/sec
Power Options: 85-265 VAC, 50/60 Hz; 90-265 VDC, 20 W max or 12-36 VDC; 12-24 VAC, 6 W max.
Required Fuse: UL Recognized, 5 A max, slow-blow; up to 6 meters may share one fuse.
Operating Temperature: -40 to 65°C (-40 to 149°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Process Inputs: 0-20 mA, 4-20 mA, 1-5 V, ±10 V
Relays: 2 Form C (SPDT); rated 3 A @ 30 VDC or 3 A @ 250 VAC resistive load
