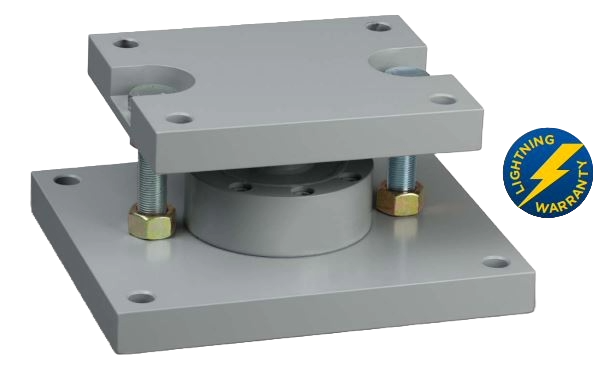

Pancake Load Cell Assemblies

Low Profile. High Capacity. Reliable Performance.

The BinTrac® Pancake Load Cell delivers accurate, dependable weighing for feed bins, tanks, hoppers, and industrial bulk storage applications. Designed with a low-profile compression design, pancake load cells provide precise weight measurement while maintaining a compact footprint that simplifies installation on new or existing structures.

Available in 25,000 lb. and 55,000 lb. capacities, BinTrac Pancake Load Cells are engineered for demanding agricultural and industrial environments. The rugged design withstands vibration, shock loading, and harsh outdoor conditions while delivering consistent accuracy in inventory measurement for feed, grain, plastics, brewing ingredients, aggregates, and other bulk materials.

Heavy-duty leg mounting plates can be mounted to any leg style to provide secure installation and long-term structural stability. The low-profile design minimizes lifting height requirements, making the system ideal for applications where installation space may be limited.

A lightning warranty and durable construction help ensure reliable operation in outdoor environments exposed to changing weather conditions.

BinTrac Pancake Load Cells integrate with BinTrac indicators, communications modules, and remote inventory monitoring software to provide real-time inventory visibility from a local display, PC, or mobile device. Operators can monitor usage trends, delivery weights, and inventory levels to improve purchasing decisions, reduce shortages, and streamline operations.

High Capacity Features

• Low-profile compression load cell design
• Available in 25,000 lb. and 55,000 lb. capacities
• Heavy-duty leg mounting plates
• Durable, outdoor-friendly construction
• Accurate weight measurement for bulk materials
• Lightning warranty for outdoor environments
• Compatible with BinTrac monitoring systems

Typical Applications

• Poultry and livestock feed bins
• Grain and seed storage
• Breweries and distilleries
• Plastics and resin storage
• Industrial tanks and hoppers
• Aggregate and bulk material storage
• Manufacturing facilities

About Pancake Load Cell Assemblies

Pancake load cell mounting bracket assembly includes 20 ft connector style (load cell) cable, and mounting brackets.

Recommend using anchor plate version for ease of serviceability.

Standard BinTrac warranty provides coverage for lightning damage to load cells for 12 months from the delivery date. The ‘extended warranty’ provides for an additional 24 months of coverage (36 months total) for lightning damage to load cells only. The warranty for any other component is not extended.

Recommend to not exceed 85% of maximum rated load capacity of load cells for all applications due to uneven pads and loading.
