Wiring Your BMRX-300 Rotary
Thank you for choosing the BMRX-100 rotary paddle sensor for your level indicator needs. Please visit support.binmaster.com or call 402-434-9102 for technical assistance.
BMRX-300 Features
The BMRX-300 rotary has a large, built-in status indicator light that is visible from up to 100 feet away.
The light is green when the paddle turns, and changes red when the paddle is stopped by material. This enables visual point-level alerts and can also be wired to a horn or alarm
The red enclosure can rotate post-installation to ensure conduits are oriented downward.

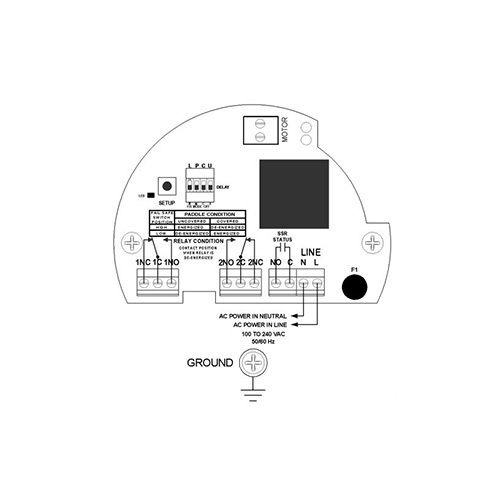

Here is the wiring diagram for BMRX-300 level sensors. Consult the appropriate manual below for specific installation instructions.

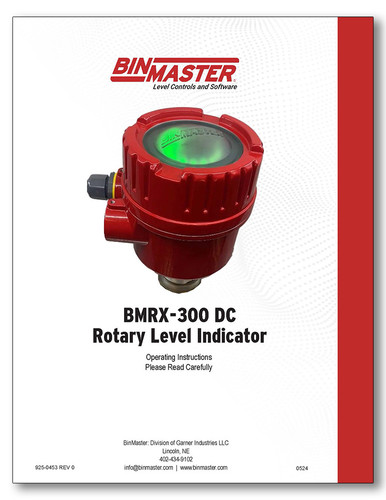

BMRX-300 Fail-Safe Rotary Sensor Manuals
