Wiring Your BMRX-100 Rotary
Thank you for choosing the BMRX-100 rotary paddle sensor for your level indicator needs. Please visit support.binmaster.com or call 402-434-9102 for technical assistance.
BMRX-100 Features
This electromechanical indicator has no PCB, making it resistant to moisture and vibration.
It accommodates materials from 2 lb. to 100 lb./ft.³.
The red enclosure can rotate post-installation to ensure conduits are oriented downward.

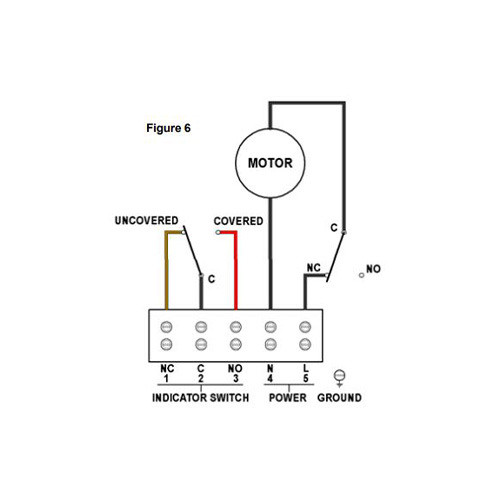

Here is a typical wiring diagram for the BMRX-100. Consult the appropriate manual below for specific installation instructions.
