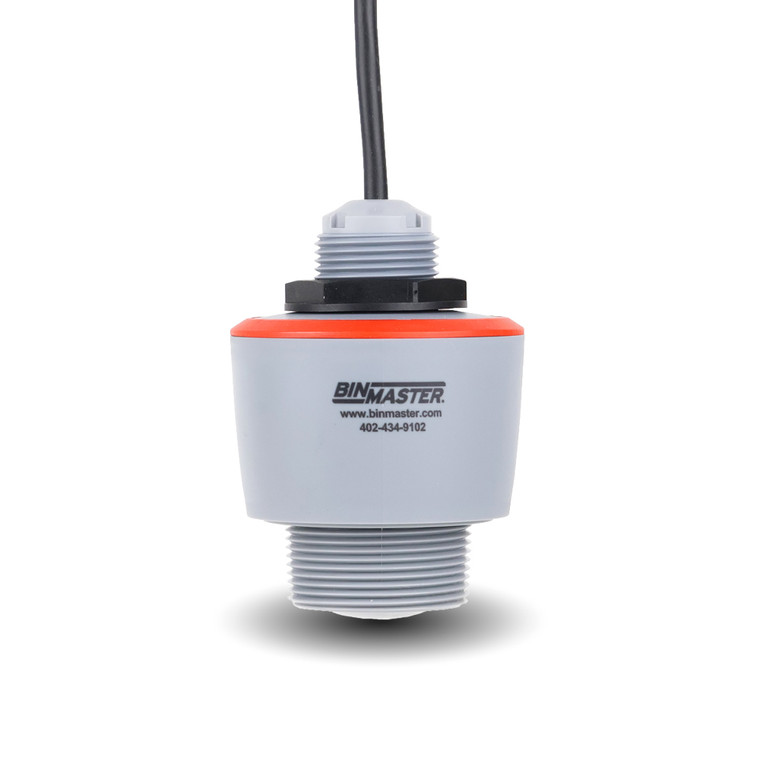

CNCR-120 Compact non-contact radar - 49 ft (15 M) - top connection

SKU

CNCR-120.

The CNCR-120 is a compact 80 GHz radar for distances up to 49' (15m). It is installed using a polyurethane pigtail connection cable and has a top cable connection. These sensors are rated to IP66/IP68 (3 bar) with housings made from durable PVDF material that has excellent chemical, abrasion, flame resistance, and UV stability. The FKM seal provides heat and chemical resistance for long-lasting durability.

Compact Non-Contact Radar: 80 GHz radar for tanks and silos up to 98’

Small size for smaller tanks. Easy to wire using a pigtail electrical connection. Bluetooth set up on your phone.

Where to use CNCR radar level sensors?

Small liquid tanks or solids silos. Install in existing vessel openings. Measures non-intrusively through IBCs or plastic vessels.

Where does level measurement data go?

Any BinCloud® inventory management software on your phone, tablet, or PC. Or send data to a local walk-up display or a PLC.

The difference between the four level sensor models:

CNCR-110: measures up to 26’, top pigtail connection

CNCR-120: measures up to 49’, top pigtail connection

CNCR-130: measures up to 49’, side pigtail connection

CNCR-190: measures up to 98’, top pigtail connection

Note: For solids, distances are 50% less.

Check with the factory for the latest hazardous approvals.

CNCR-100 series radars rock!

Narrow 8° beam works reliably in challenging conditions
Wall-mounted 3.5” or 8” brackets for simple installation
No dead zone, measures right up to the face of the sensor
Chemical resistant enclosure, IP Rated against dust and water ingress
Compact design fits in tight spaces, installs through existing openings
Increases safety, no climbing tanks, or working in confined spaces
No maintenance, low cost of ownership

Compact. Accurate. Tough. The little radar that could can.

Inventory Management
Ensure adequate supply for production, prevent material shortages.

Shop Inventory Management

Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.

Shop Remote Monitoring

Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.

Shop Vendor Managed Inventory

Storage Dome Monitoring
Monitor conveyed or truck loaded materials in large storage structures.

Shop Dome Monitoring

Pile Monitoring
Manage pile height, size, and volume of bulk materials.

Shop Pile Monitoring

More Information
SKU	CNCR-120.
Means of Measurement	Radar
Measurement Type	Continuous Level
Medium	Solids, Liquids
Voltage	12-35 VDC
Outputs	Loop Powered 4-20 mA, MODBUS protocol
Ambient Temperature	-40°F to +176°F (-40°-to +80 °C)
Process Temperature	Up to +176°F (80°C)
Approvals	Contact factory for latest updates.
Enclosure Type	IP 66, IP 68
Enclosure Material	Plastic
Mounting	1.5" Threaded NPT, 1.5" Threaded Straight
Range	49 ft. (15 M) liquids / 25 ft. (7 M) solids

Mounting Plates

Swivel Mount with 1" NPS Ball and 12" Extension Pipe

Contact Us

Business Hours

Need assistance faster?Give us a call Monday - Friday8:00am - 5:00pm CST

Get a quote

CNCR-120 Compact non-contact radar - 49 ft (15 M) - top connection

Mounting Plates

Accessories

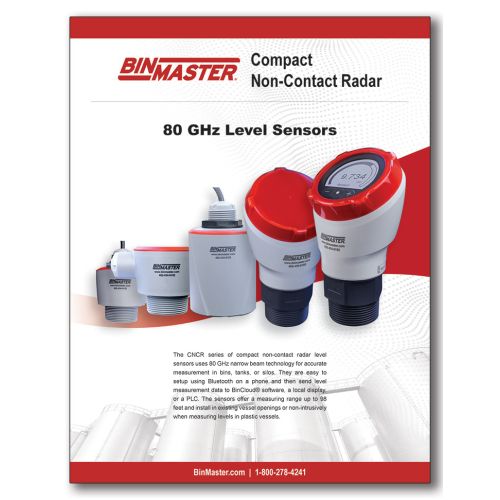

CNCR-100 Series Brochures

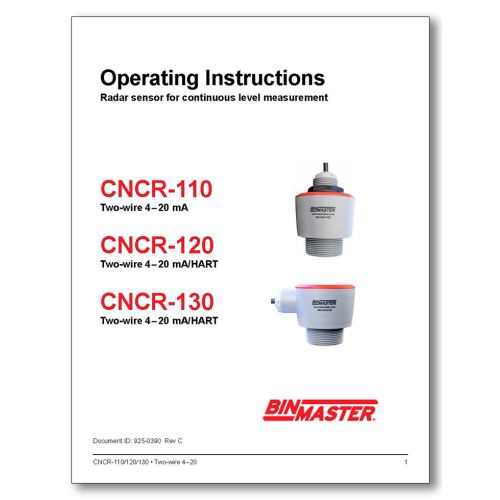

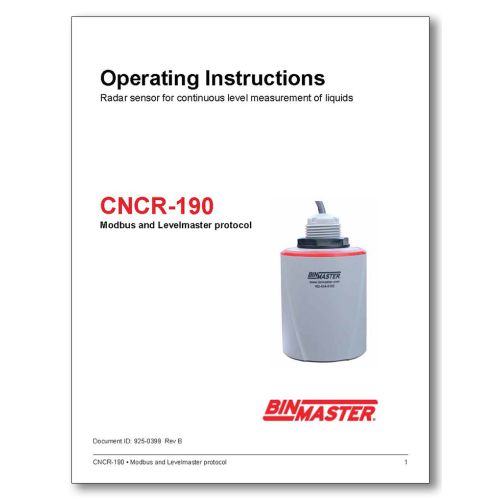

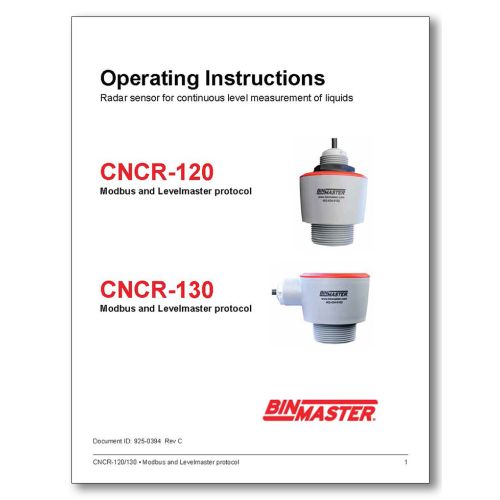

CNCR-100 Series Manuals

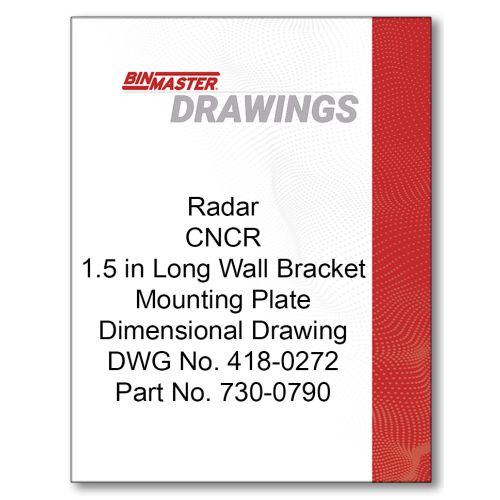

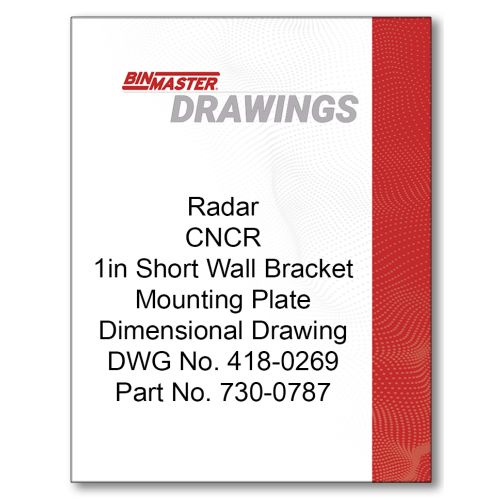

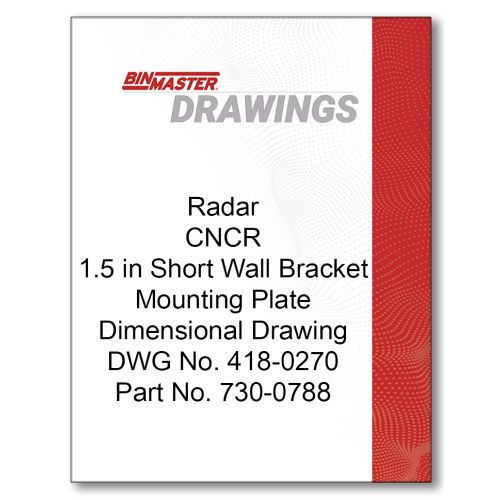

CNCR-100 Series Spec Drawings
