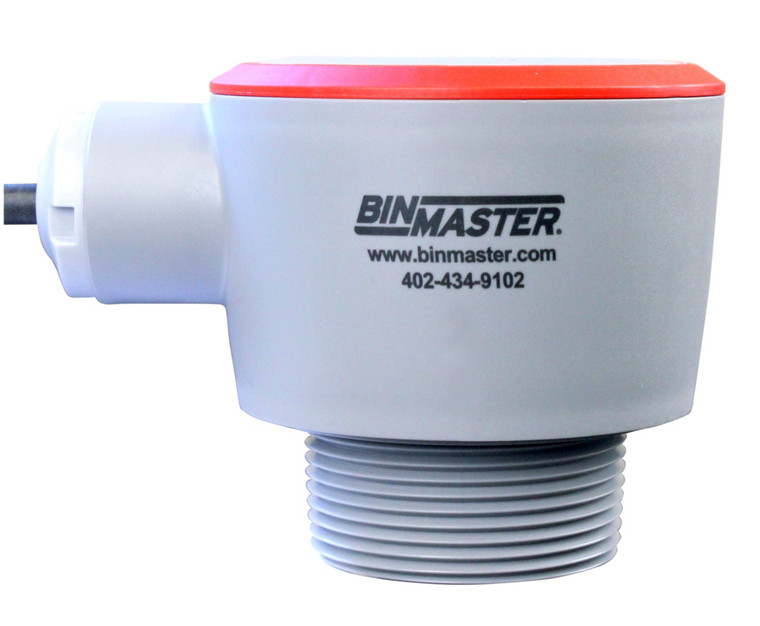

CNCR-130 Radar Level Sensor with Side Cable Entry (49 ft Range)
The CNCR-130 compact radar sensor offers the same 49 ft (15 m) measurement range as the CNCR-120 but features a side-mounted cable connection—ideal for installations with clearance limitations or where top access is restricted.
Its flexible mounting design makes it a preferred choice for tight vessel tops, obstructed openings, or angled installations.
Flexible Installation with Side Cable Design
- Measures up to 49 ft (15 m)
- Side cable connection for clearance-sensitive installations
- Ideal for vessels with limited vertical space
- Same performance as CNCR-120 with added mounting flexibility
Key Features & Benefits
- 80 GHz radar technology for high accuracy
- Reliable in dusty, humid, or vapor-filled environments
- Compact housing fits tight or obstructed mounting points
- No contact with material for long service life
- Supports 4-20 mA and Modbus communication
Ideal Applications
- Tanks with limited overhead clearance
- Skid-mounted equipment
- Industrial process vessels
- Retrofit installations
| Means of Measurement | Radar |
|---|---|
| Measurement Type | Continuous Level |
| Medium | Solids, Liquids |
| Voltage | 12-35 VDC |
| Outputs | Loop Powered 4-20 mA, MODBUS protocol |
| Ambient Temperature | -40°F to +176°F (-40°-to +80 °C) |
| Process Temperature | Up to +176°F (80°C) |
| Approvals | Contact factory for latest updates. |
| Approvals | Ordinary Locations (non-hazardous) |
| Enclosure Type | IP 66 & IP 68 |
| Enclosure Material | Plastic |
| Mounting | 1.5" Threaded NPT |
| Range | 49 ft. (15 M) liquids / 25 ft. (7 M) solids |
