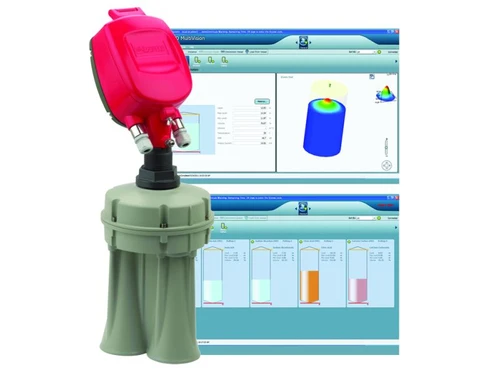

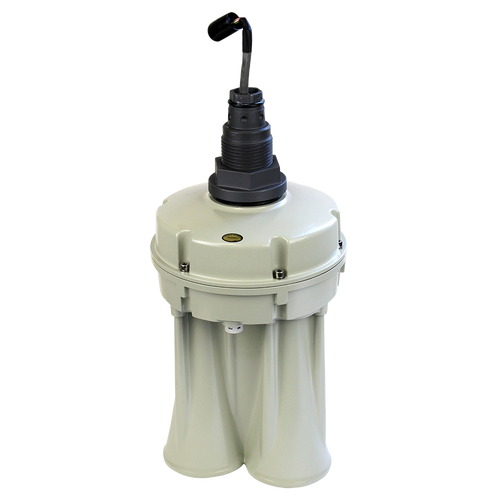

3D acoustic level sensor RL - standard with 7.67” diameter horn, 20-32 VDC, 4-20 mA output, Modbus, and RS-485 communications. Determines the average volume of stored materials based on a 15º beam angle in silos up to 14’ diameter and 200’ tall. Unit comes with internal LCD display and 3DVision software. One-year warranty.
Standard: FM listed for Class I, II, Division 1, Groups C, D, E, F & G.
High Temp: HT for high temperatures up to 365°F
| Means of Measurement | 3D Acoustic |
|---|---|
| Measurement Type | Continuous Level |
| Medium | Solids |
| Voltage | 20-32 VDC |
| Outputs | 4-20 mA, MODBUS protocol, RS-485 |
| Ambient Temperature | -40°F to +185°F (-40°C to +85°C) |
| Process Temperature | Up to +176°F (80°C) |
| Approvals | CFM Intrinsically Safe Class I, II, Division I, Groups C, D, E, F, G (US & Canada) |
| Enclosure Type | IP 67 |
| Enclosure Material | Die cast aluminum |
| Mounting | Mounting Flange |
| Conduit Entry | 0.5" NPT |
| Range | 200 ft. (61 M) |
