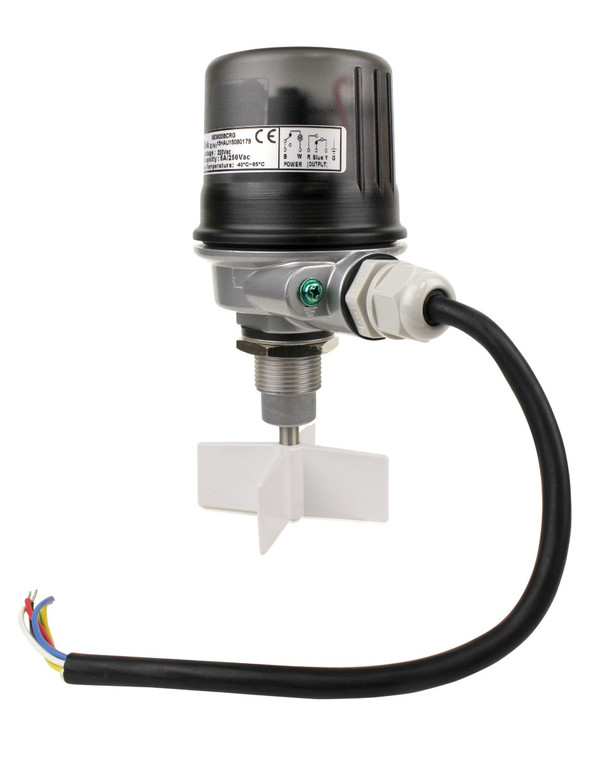

MR-G-24 - Mini-Rotary 24 VAC with 4-vane, polycarbonate paddle, complete with SPDT contacts. This economical and compact mini rotary paddle level indicator is designed for controlling material levels in smaller bins and hoppers where other types of equipment simply won't fit.
| Means of Measurement | Rotary Paddle |
|---|---|
| Measurement Type | Point Level |
| Medium | Solids |
| Voltage | 24 VAC |
| Search Voltage | 24 VAC |
| Outputs | Relay SPDT |
| Outputs | Relay |
| Ambient Temperature | -4°F to +140°F (-20°C to +60°C) |
| Process Temperature | Up to +176°F (80°C) |
| Search Process Temperature | Below 250 °F |
| Approvals | Ordinary Locations (non-hazardous) |
| Enclosure Type | NEMA 1 |
| Enclosure Material | Plastic |
