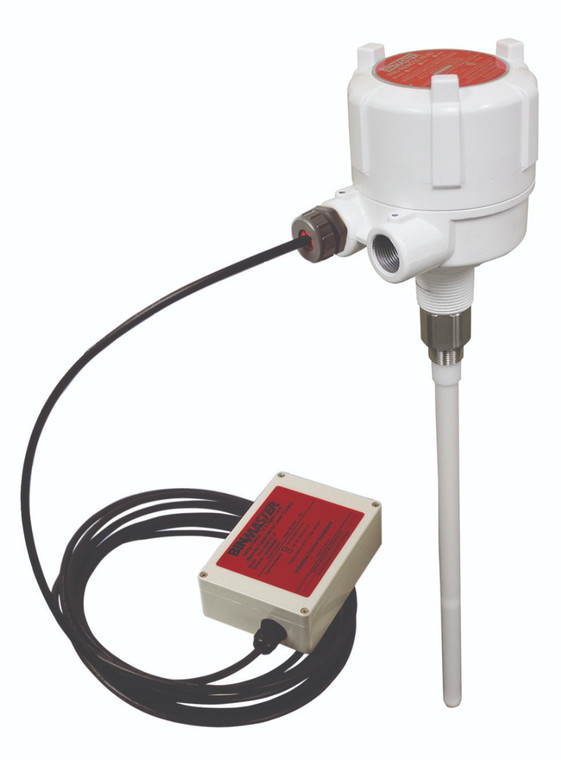

The BinMaster PRO Remote 25' 115 VAC Power Pac delivers flexible, dependable point-level detection by allowing the electronics to be mounted remotely—up to 25 feet from the sensing probe. Powered by 115 VAC, it ensures reliable performance across bulk solids, powders, liquids, and slurries. Featuring intuitive “Quick-Set” calibration, adjustable time delay, and PRO-Shield technology to minimize buildup interference, it’s built for accuracy. Housed in a rugged, maintenance-friendly enclosure with DPDT relay output, this Power Pac streamlines installation, service, and monitoring in challenging environments—without compromise.
NOTE: Triax cable for remote installation is required and must be ordered separately.
| Means of Measurement | Capacitance |
|---|---|
| Measurement Type | Point Level |
| Medium | Solids |
| Voltage | 115 VAC, 230 VAC, 12-24 VAC/VDC, 115 VAC 3A |
| Search Voltage | 110 VAC |
| Outputs | Relay DPDT 10 Amp - 250 VAC max |
| Outputs | Relay |
| Ambient Temperature | -40°F to +185°F (-40°C to +85°C) |
| Process Temperature | Up to +500°F (260°C) |
| Search Process Temperature | Below 450 °F |
| Approvals | Unlisted |
| Enclosure Type | NEMA 4X |
| Enclosure Material | Die cast aluminum |
| Mounting | 1.25" NPT |
| Conduit Entry | 0.75" NPT |
