main product photo

PROCAP II Power Pac

Request a Quote
SKU
PC2U.

The BinMaster ProCap II Power Pac is engineered for dependable point-level detection in bins, tanks, and silos across a wide range of applications. Featuring a selectable 115/230 VAC universal power supply, bright LED status indicator, and simple “Quick-Set” calibration, it ensures fast setup and reliable performance. A durable die-cast aluminum enclosure with dual conduit entries makes installation and maintenance straightforward, while PRO-Shield technology reduces false readings caused by material buildup. With DPDT relay output, selectable fail-safe, and flexible probe options, the ProCap II Power Pac delivers accuracy, durability, and versatility for solids, liquids, and slurry detection.

Overview
Applications
Specs
Downloads
Accessories
Video

PROCAP capacitance probe: Your most versatile point level sensor

Get a custom capacitance probe built to your specifications right here in the USA. BinMaster assemblers will build your probes in-house to suit a wide variety of powders, solids, liquids, and slurries.

Choose your power requirements:

PROCAP I: Universal power supply 24 to 240 VAC/VDC

PROCAP II: Selectable 115/230 VAC

USA-made for accuracy and reliability under rigorous conditions:

Fail-Safe Operation: Sensor status light alerts to sensor status to prevent processing mishaps

False Reading Prevention: PRO-Shield ignores buildup on the probe or bridging between the sidewall and the probe

Sanitary Conditions: PROCAP I-3A & II-3A meet 3-A material and design standards for sanitary food and dairy processing

Get the right probe in the right length for your vessel and material:

  • Bare, Delrin, or Teflon sleeved, food grade, shielded or unshielded
  • Flush mount for bin walls, chutes, and conveyors
  • Custom length solid and flexible extensions

Plus, you get all this with every BinMaster PROCAP:

  • PRO-shield buildup prevention
  • Simple quick set, temperature stable calibration
  • Switch-selectable, high/low fail-safe
  • Adjustable time delays to 30 seconds to prevent false signals
  • Visual LED status light indicates covered, uncovered, or failed
  • Protection from RF interference
pro-remote-capacitance-probe
3D-overflow_1

Overflow Prevention
High level alerts to avoid over-filling vessel

Shop Overflow Prevention
material-outage

Material Outages
Low level alerts eliminate empty conditions

Shop Outage Prevention
chute-clogged

Plugged Chutes
Detect when chutes are clogged with material

Shop Plugged Chutes
process-control

Process Control
Switching relay to turn a process off or on

Shop Process Control
conveyor-damage

Conveyor Overload
Prevent jamming or damaging conveyors

Shop Conveyor Overload
More Information
SKUPC2U.
Means of MeasurementCapacitance
Measurement TypePoint Level
MediumSolids
Voltage 115/230 VAC Selectable
OutputsRelay DPDT 10 Amp - 250 VAC max
Ambient Temperature-40°F to +158°F (-40°C to +70°C)
Process TemperatureUp to +145°F (62°C)
ApprovalsUnlisted
Enclosure TypeNEMA 4X, NEMA 5, NEMA 9, NEMA 12
Enclosure MaterialDie cast aluminum
Mounting1.25" NPT
Conduit Entry0.75" NPT

Mount Plates

Accessories

Introductory video about capacitance probes.

How to calibrate and wire a capacitance probe.

How to wire a capacitance probe to a light.

Mini capacitance probes for point level detection.

ProCap Brochures

ProCap Manuals

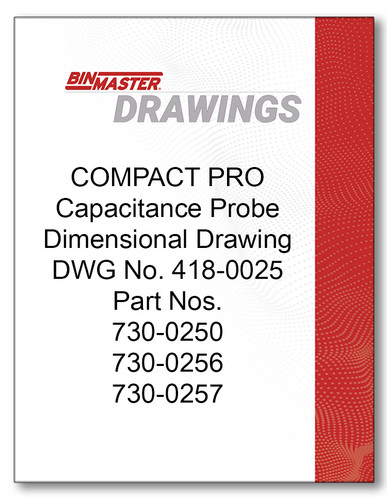

ProCap Spec Drawings
