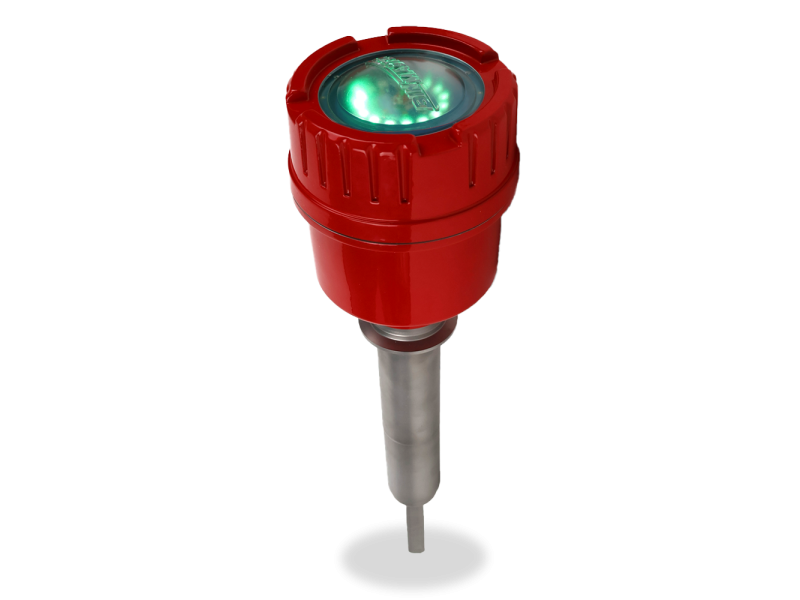

VRX31 – Sanitary Vibrating Probe Level Sensor

The VRX31 sanitary vibrating probe level sensor provides hygienic point level measurement. Now featuring a bright, built-in LED status indicator!

The light can easily be seen from across a production floor, appearing as red or green, and changing color based on if material is or is not covering the probe and damping its vibration.

Exclusive sanitary features include a 2” stainless steel tri-clover fitting that allows for easy cleanability and sanitation in food and pharmaceutical processing applications.

Use VRX31 to measure lightweight or low-dielectric bulk solids, powders, granules, or flakes as light as 1.9 lb./ft.³ (30 g/liter). The sensor utilizes a 24 VDC or 115/230 VAC power supply and operates in temperatures up to 140°F (60°C).

The vibrating blade has a 11.81” insertion length into the vessel to detect high, mid, or low point-level conditions. It can be mounted at the top, side, or cone of a tank, hopper, mixer, or process vessel.

By providing reliable level alerts, users can reduce material waste, ensure precise batching, and know when to refill or order more when material levels get too low.

BinMaster’s VRX31 features DPDT relay contacts, allowing the user to preset two switching outputs—such as to “covered” and “uncovered”—plus configurable time delay settings and selectable fail-safe protection.

The VRX31’s die-cast aluminum power pac—rated NEMA Type 4X—features 3/4" NPT conduit entries, a screw-off cover, and USDA-approved powder coat finish. Its durable design and self-cleaning capabilities offer a long, dependable service life.

Additional configurations of the VRX sanitary probes are available to best fit your application. Custom, made-to-order extensions up to 6.56’ are also available. See manual section 3.0 for more details.

Email [email protected] or call 800.278.2421 to discuss your needs.

For ordinary locations. Approvals coming Fall 2025!
