LED Alarm Panels for Point Level Sensors

SKU
BM-PLAP

Point-level alarm panels offer visual alerts of sensor statuses. Complete with LED lights and buzzer.

Please specify quantity of LEDs in your Quote Request.

4 Lights – BM-4             SKU 730-0448

8 Lights – BM-8             SKU 730-0449

12 Lights – BM-12        SKU 730-0450

16 Lights – BM-16        SKU 730-0451

20 Lights – BM-20        SKU 730-0481

24 Lights – BM-24        SKU 730-0482

About
Uses
Features
Specs
Downloads

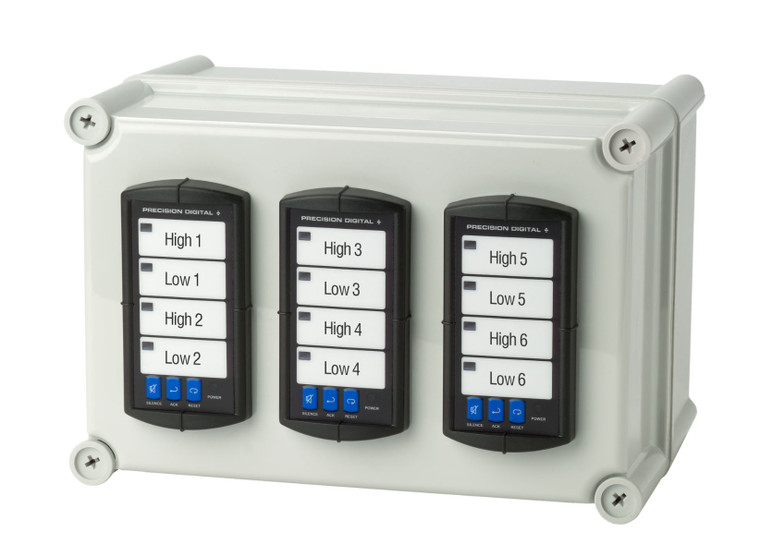

The BinMaster point level alarm panel consolidates information at a convenient centralized location. Available with four to 24 vessel level indicator stations, the alarm panel is capable of monitoring high and low status for two to 12 separate vessels from a single panel. It alerts users to vessel level conditions via a blinking LED light and an audible alarm, saving time and eliminating the need to manually inspect vessel levels. The point level alarm panel can be used with multiple point level indicators including a diaphragm switch, rotary paddle, tilt switch, capacitance probe or vibrating rod–enabling the user to be automatically alerted when a bin reaches a full, partially full, or empty level.

  • Designed to monitor the level of multiple bins or tanks from one convenient location
  • Operator can view when a bin is full, partially full or empty
  • Helps manage filling and emptying of bins by alerting operator to level point via signal light and alarm
  • Operates with a variety of point level indicators
  • Rotary, capacitance probe, vibrating rod, diaphragm / pressure switch, or tilt switch
  • Available with 4, 8, 12, 16, 20 or 24 stations
  • NEMA 4X enclosure
  • Front panel LED alarm & power indication
  • Indicates a level point by means of an eye-catching signal light and audible alarm
  • Modules on the alarm panel can also be connected to an external common alarm (horn)

Input Voltage: 115 VAC ± 10%, 50/60 Hz, 3 VA. 230 VAC ± 10%, 50/60 Hz, 3 VA. 24-48 VDC, 2 W maximum
Relay: SPDT, 2 Amp 240 VAC
Enclosure: NEMA 4X
Operating Temp: -4ºF to +158ºF (-20ºC to +70ºC)
Warranty: One year

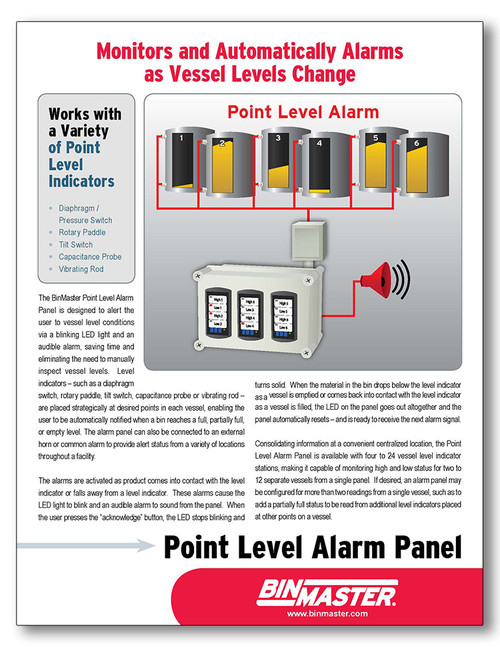

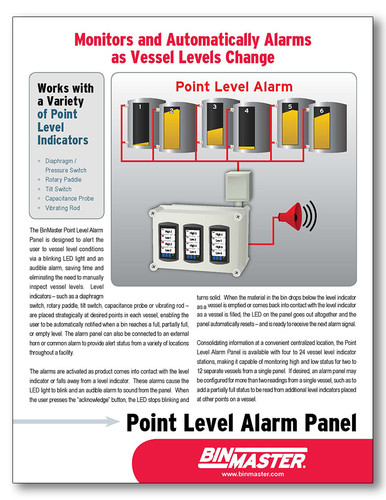

Point Level Alarm Panel Brochures

Point Level Alarm Panel Manuals

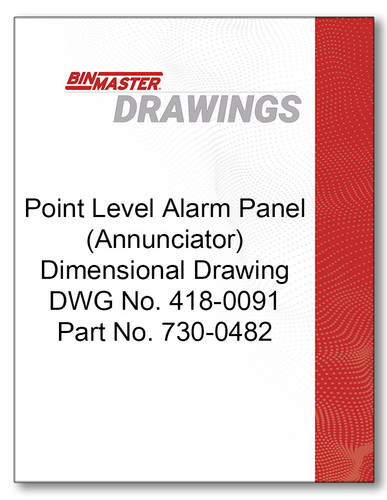

Point Level Alarm Panel Spec Drawings
