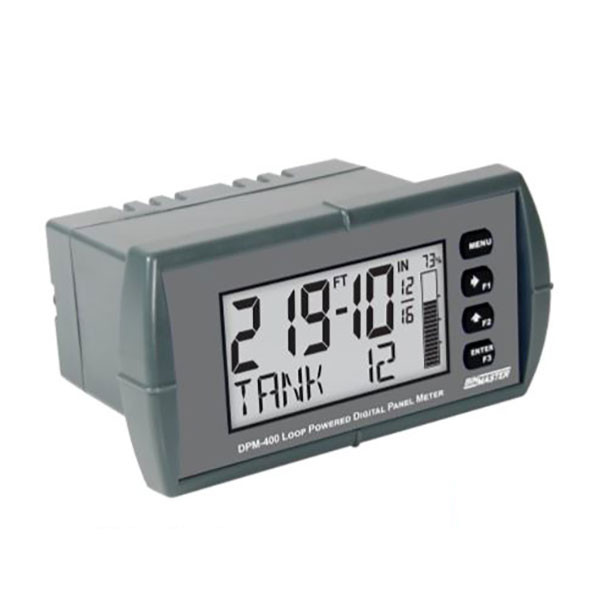

DPM-400: Loop-Powered, Dual-Line 4-20 mA Panel Meter – Bargraph Display

SKU
DPM-400-LP-BG

The DPM-400-LP-BG features the loop-powered, dual-line bargraph display.

Please specify choice of output(s) in your Quote Request.

No Options Installed                   SKU 348-0093

2 Relays                                        SKU 348-0094

4-20 mA                                        SKU 348-0095

2 Relays & 4-20 mA Output       SKU 348-0096

About
Uses
Features
Specs
Downloads

The DPM-400 loop-powered digital panel meter allows you to install a local display right where you need it. No power, no problem. This digital panel meter is powered by an existing 4-20 mA loop, making it an ideal display solution for any of your 4-20 mA sensors. It features a dual-line display with a 5-digit alphanumeric top line and an 8-digit alphanumeric bottom line. A common level sensor setup shows input by scale on the top line (such as feet and inches) and a description on the bottom line (such as silo number). Both lines use 14-segment, alphanumeric characters for clear indication of tags, units, or alarm messages. Choose from a general purpose decimal-display, a decimal display with a bar graph, or a feet and inches with a bar graph display.

  • Use with any 4-20 mA output sensor where there is a process to measure and control
  • Facilities that want local indication to prevent climbing
  • Redundant / backup display
  • Lift station wet well level display with pump alternation, run time, and cycle count
  • Sump level display with pump alternation, run time, and cycle count
  • Metals and mining
  • Water and wastewater
  • Oil and gas
  • Power
  • Chemicals
  • Pulp and paper
  • Flashing red display with custom alarm message
  • 5-digit alphanumeric top line and 8-digit alphanumeric bottom line
  • Dual-line display can display two different engineering units and toggle between them
  • Optional 20-segment bar graph indicating numeric percent full
  • Feet and inches display option for reading distance and percent full
  • Free programming software simplifies setup of multiple meters

Input: 4-20 mA
Power: 4-20 mA loop
Display: Dual-line LCD with backlight. Both lines 14-segment alphanumeric. Top: 0.7" (17.8 mm), Bottom: 0.4" (10.2 mm). Display may be programmed to turn red and flash a user-defined message on alarm condition.
Front Panel: NEMA 4X, IP65; NEMA 4X enclosures available
Backlight: Powered by 4-20 mA loop. Intensity varies with signal level
Display Update Rate: Ambient > -10°C: 1 update/second; Ambient = -20 C: 1 update/2 seconds; From -20°C to -40°C the update rate slows down 1 second for every 2°C (e.g. at -24°C, 1 update/4 seconds).
Non-Volatile Memory: All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.
Environmental: Operating temperature range: -40 to 75°C
Relative humidity: 0 to 90% non-condensing. Printed circuit boards are conformally coated.
Programming Method: Front panel & Free PC-based USB programming software

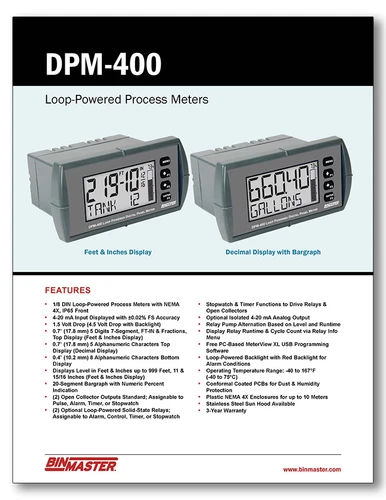

DPM-400 Brochures

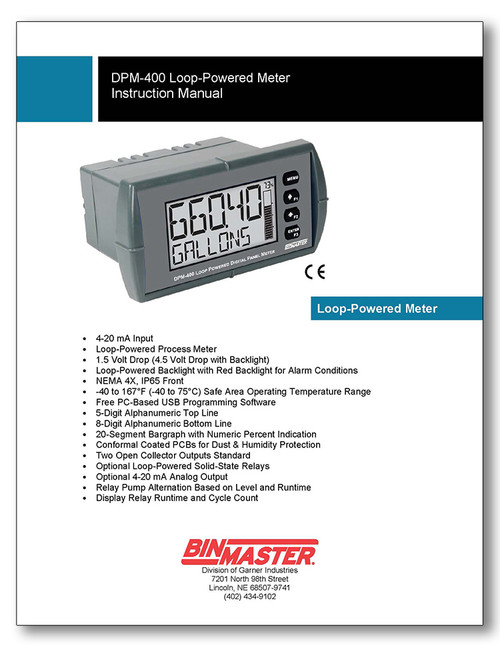

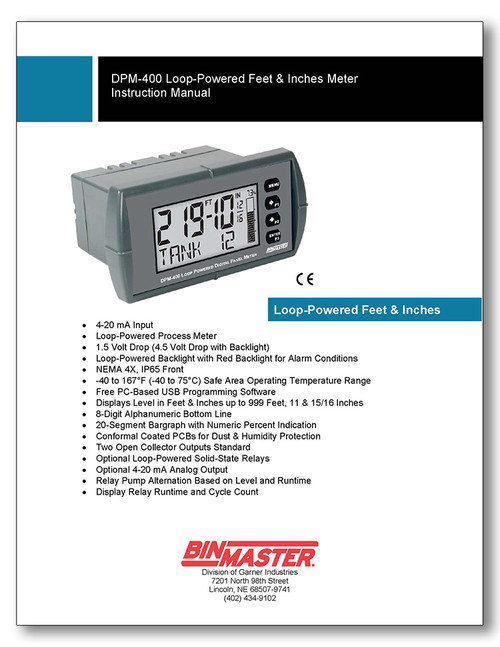

DPM-400 Manuals
