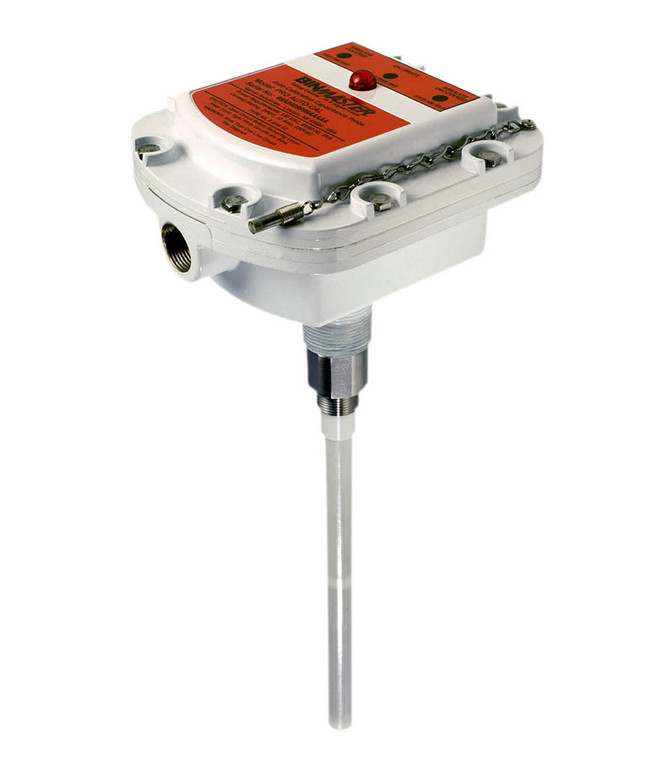

PRO AUTOCAL 115 Power Pac

SKU
PA1.

The BinMaster PRO AUTO-CAL 115 Power Pac delivers streamlined, high-precision point-level detection powered by 115 VAC. Its standout feature—automatic calibration using a magnetic trigger—lets users calibrate and test without removing the cover. Enjoy ultra-sensitive performance with adjustable time delay (0.5–10 seconds) to virtually eliminate false signals. PRO-Shield technology keeps material buildup from compromising accuracy, while low-frequency operation ensures immunity to RF interference. A bright LED status indicator keeps you clearly informed of covered, uncovered, or power fault conditions. Quick, reliable, and maintenance-minimizing—this unit is designed for seamless performance in demanding environments.

Overview
Applications
Specs
Downloads
Accessories
Video

PRO AUTOCAL: Calibration Without Opening the Unit

This capacitance sensor allows for simple, automatic calibration using a special magnet. No need to remove the unit cover!

Want a capacitance probe that sets up fast? Temperature-stable calibration and external testing can be performed in just minutes.

Get unsurpassed 0.5 pF sensitivity and fail-safe performance with the PRO AUTOCAL. Plus, an adjustable time delay of up to 10 seconds allows for settling of material—virtually eliminating false alarms.

What else you get with PRO AUTOCAL:

  • PRO-Shield compensates for material buildup to guard against false readings
  • Operates below RF range, always free from RF interference
  • Switch selectable high/low fail-safe safeguards from failures
  • Delrin or Teflon sleeved, bare, food grade, flush mount, or flexible probes
  • Visual LED indicates sensor status of uncovered, covered, or power failure

How and where to use PRO AUTOCAL:

  • For point level detection and process control for solid, liquids, or slurries
  • Aggressive materials such as coal or fly ash; power, mining, and foundries
  • Processing of plastics, chemicals, foodstuffs, or pharmaceuticals
  • Milling operations processing feed, grain, wood, or paper
pro-autocal-capacitance-probe
Prevent overflowing grain bins and silos with BinMaster sensors

Overflow Prevention
High-level alerts to avoid overfilling vessels

Shop Overflow Prevention
Low-level material outages can be prevented with point-level detection

Material Outages
Low-level alerts eliminate empty conditions

Shop Outage Prevention
Plugged chutes detected by BinMaster rotaries

Plugged Chutes
Detect when chutes are clogged with material

Shop Plugged Chutes
BinMaster extended rotaries and process control abilities

Process Control
Switching relay to turn a process off or on

Shop Process Control
Conveyor overload detected by BinMaster rotary

Conveyor Overload
Prevent jamming or damaging conveyors

Shop Conveyor Overload
More Information
SKUPA1.
Means of MeasurementCapacitance
Measurement TypePoint Level
MediumSolids
Voltage 115 VAC
OutputsRelay DPDT 10 Amp - 250 VAC max
Ambient Temperature-40°F to +185°F (-40°C to +85°C)
Process TemperatureUp to +176°F (80°C)
ApprovalsUnlisted
Enclosure TypeNEMA 4X, NEMA 5, NEMA 9, NEMA 12
Enclosure MaterialDie cast aluminum
Mounting1.25" NPT
Conduit Entry0.75" NPT

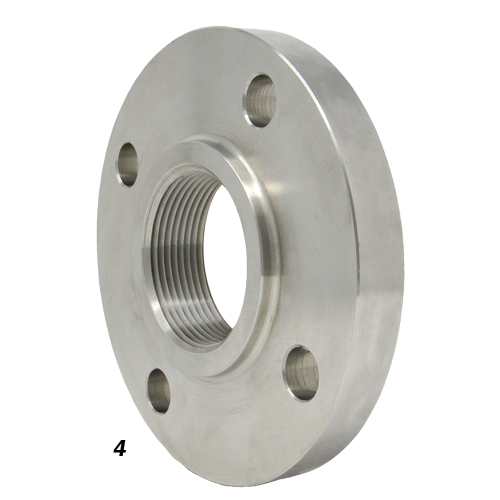

Mounting Plates
